Eco-friendlyWater Film Forming Antisolvent Foam Fire Extinguishing Agent / 3% (AFFF/AR, -10°C) User Manual

I.Overview:

Non-environmentally friendly aqueous film-forming foam (AFFF) fire extinguishing agents commonly use perfluorooctane sulfonate compounds as key components. At the fourth meeting of the Conference of the Parties to the Stockholm Convention on Persistent Organic Pollutants, 9 categories of substances—including perfluorooctane sulfonate (PFOS), its salts (often collectively referred to as PFOS in many documents and materials), and perfluorooctanesulfonyl fluoride (PFOSF)—were added to the list of controlled persistent organic pollutants (POPs) under restriction. This includes foam fire extinguishing agents, where certain perfluorooctane sulfonates are common ingredients in film-forming foam formulations.

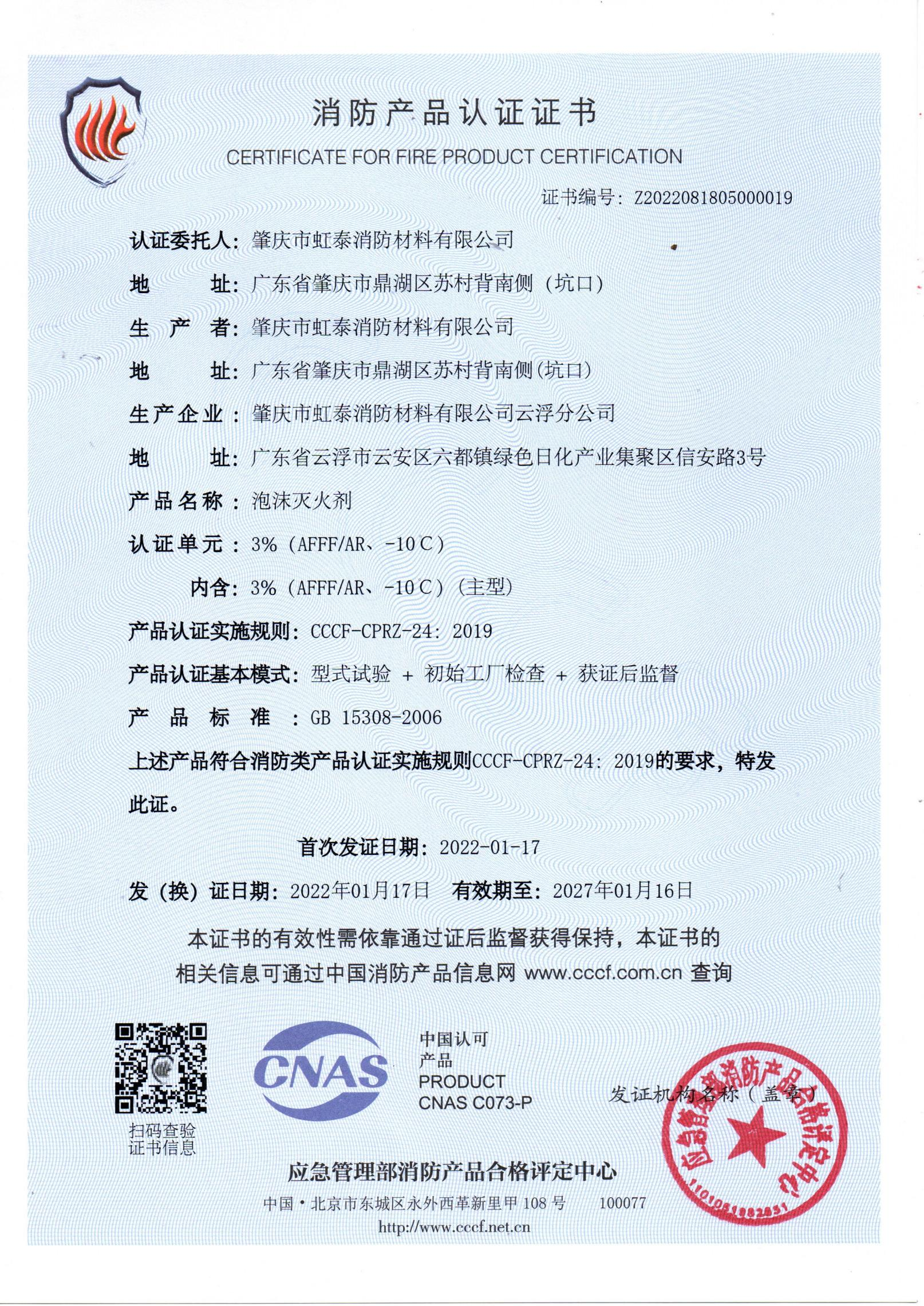

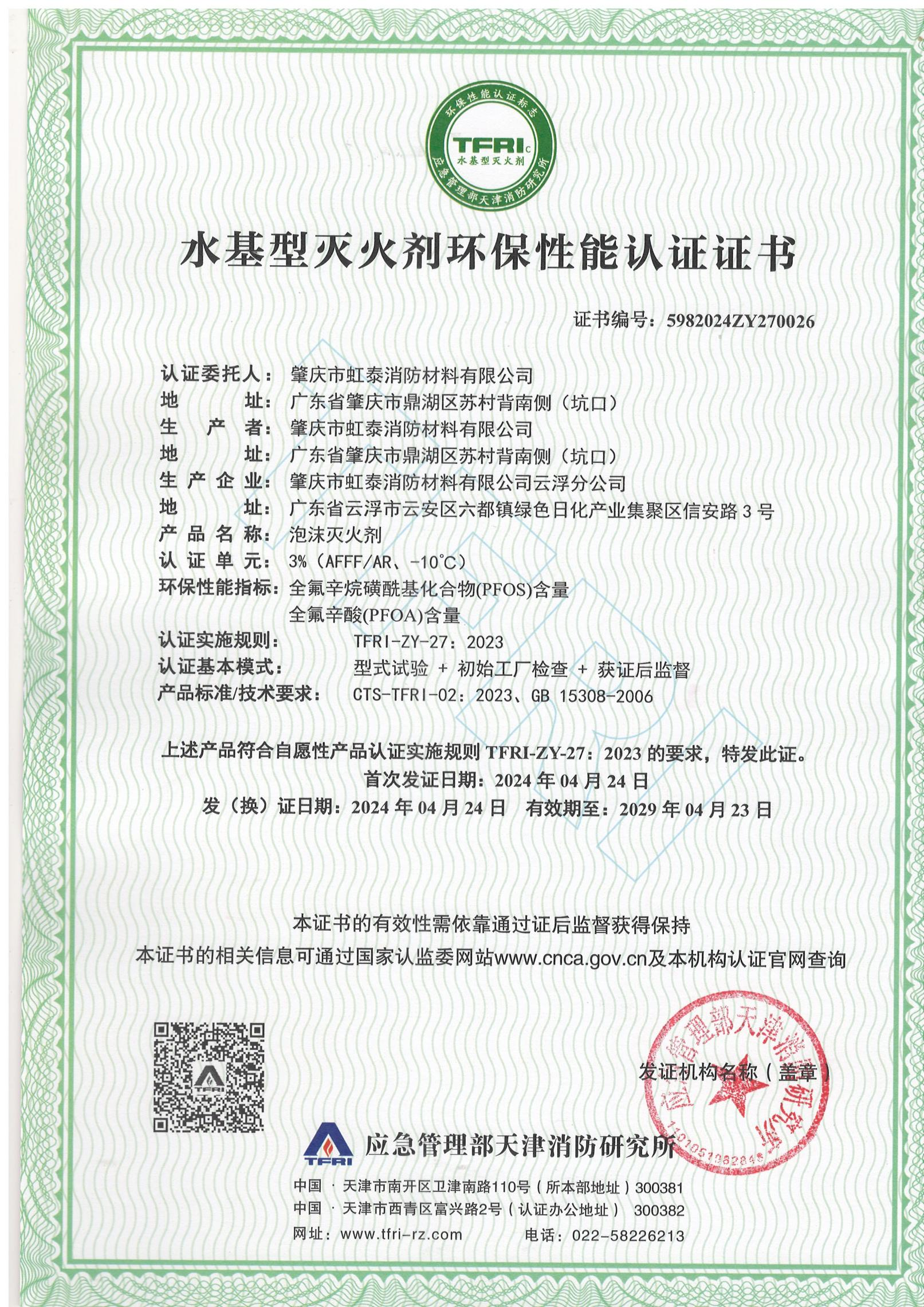

Our company has developed an environmentally friendly aqueous film-forming alcohol-resistant foam fire extinguishing agent. Tested by the Tianjin Fire Research Institute of the Ministry of Emergency Management, the product meets the fire extinguishing performance requirements of GB15308-2006 "Foam Fire Extinguishing Agents" and CCCF-CPRZ-24:2019 "Implementation Rules for Certification of Fire Protection Products: Fire Extinguishing Equipment - Fire Extinguishing Agents." It also passed inspections per GB17835-2008 "Water-based Fire Extinguishing Agents" and the Test Outline. The product contains no PFOS or PFOA and is non-toxic.

II. Extinguishing Principle:

Aqueous Film-Forming Foam (AFFF/AR) Fire Extinguishing Agent / 3% (-10°C)Multi-purpose foam fire extinguishing agent suitable for low-expansion foam systems. The product-to-water mixing ratio is 3:97. Under mechanical force, this agent generates foam and forms a polymer film at the fuel-foam interface to protect the foam from polar liquids. It rapidly extinguishes fires by isolating air through the combined action of the film and foam.

III. Scope of Application:

Suitable for extinguishing and preventing fires involving non-water-soluble flammable liquids (e.g., gasoline, diesel, kerosene, heavy oil), water-soluble flammable liquids (e.g., alcohols, ethers, esters, ketones), and general solid materials at airports, oilfields, oil depots, oil tankers, petrochemical plants, large-scale chemical factories, chemical fiber facilities, and chemical storage sites.

4. Storage Packaging Requirements

1 Product packaging containers are plastic drums or iron drums with anti-corrosive lining.

2 Store the product in a cool, dry warehouse away from direct sunlight. The storage temperature should be maintained between -5°C and 45°C.

3: When storing and using the product, ensure the container is clean.Do not mix with foam extinguishing agents, oils, or chemical products from different manufacturers or types, as this may compromise product quality.

4 Product shelf life: 2 years when sealed and stored in the environment described above.

V. Product Standard: GB15308-2006

VI. Product Performance
