Environmentally Friendly Water Film-Forming Alcohol-Resistant Foam Fire Extinguishing Agent / 6%(AFFF/AR, -10°C) User Manual

I.Overview:

Non-environmentally friendly aqueous film-forming foam (AFFF) fire extinguishing agents commonly use perfluorooctane sulfonate compounds as key components. At the fourth meeting of the Conference of the Parties to the Stockholm Convention on Persistent Organic Pollutants, 9 categories of substances—including perfluorooctane sulfonate (PFOS), its salts (often collectively referred to as PFOS in many documents and materials), and perfluorooctanesulfonyl fluoride (PFOSF)—were added to the list of controlled persistent organic pollutants (POPs) under restriction. This includes foam fire extinguishing agents, where certain perfluorooctane sulfonates are common ingredients in film-forming foam formulations.

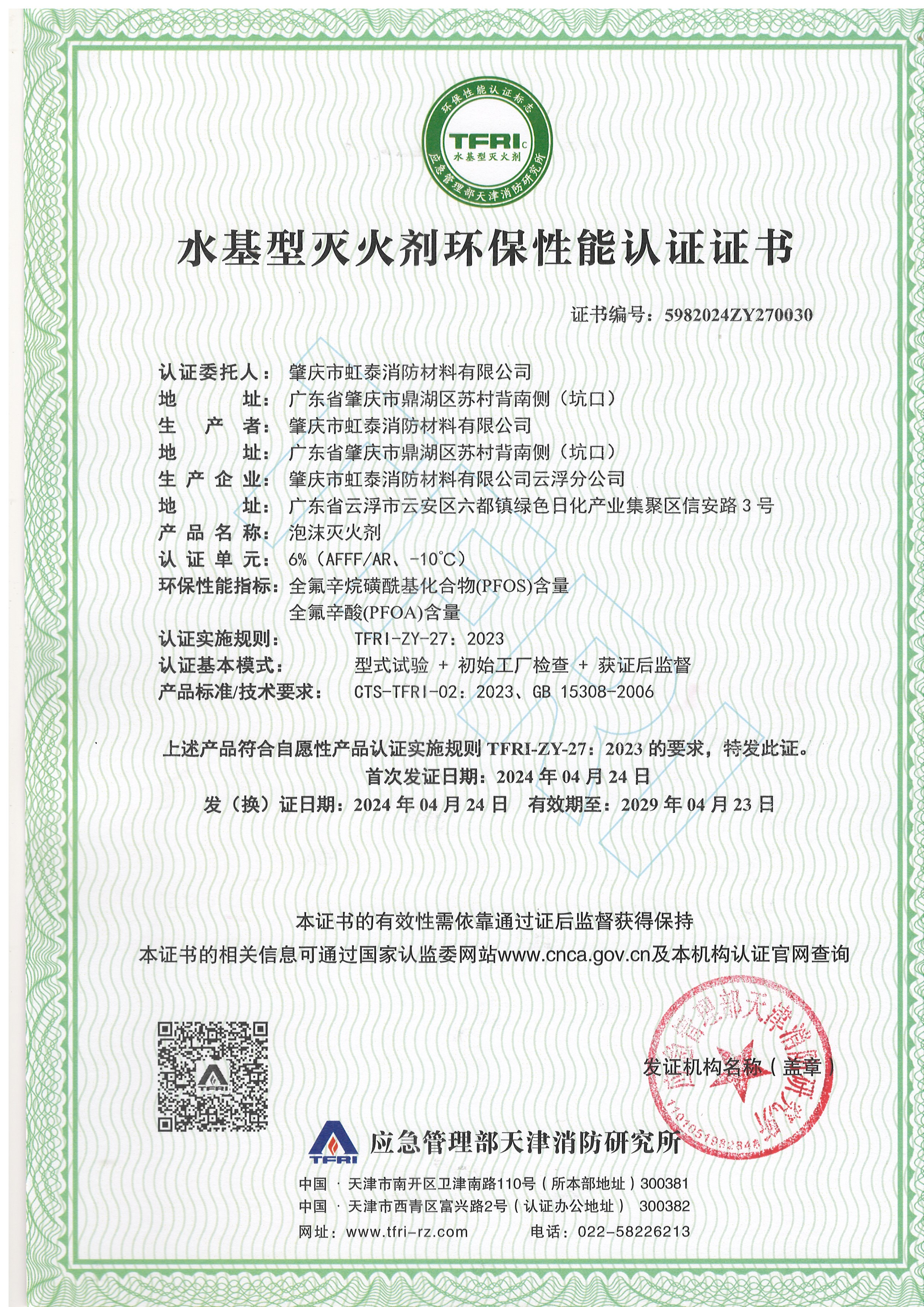

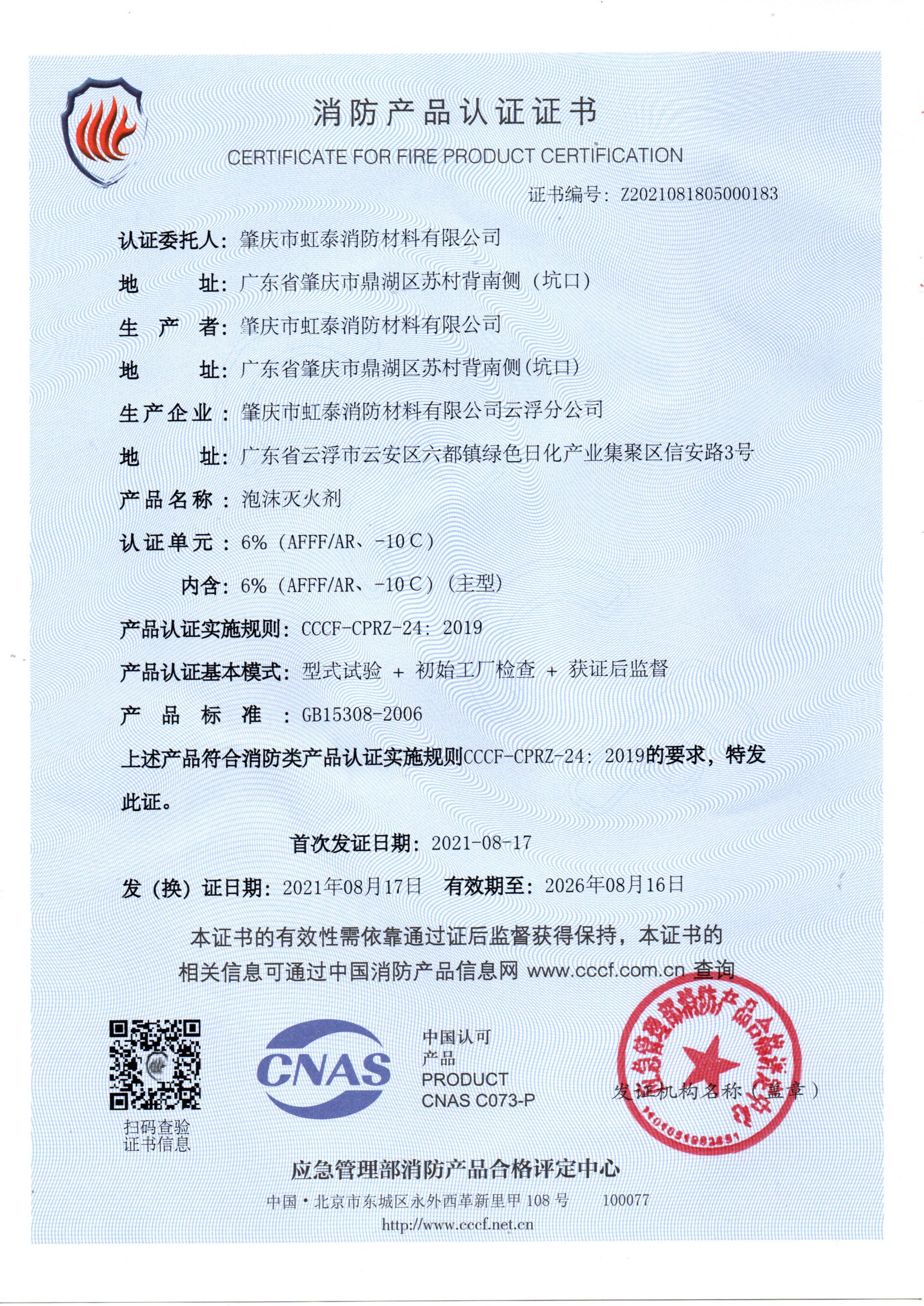

Our company's environmentally friendly aqueous film-forming alcohol-resistant foam extinguishing agent has been tested by the National Quality Supervision and Inspection Center for Fixed Fire Fighting Systems and Fire Resistance Components. The product meets the fire performance requirements of GB15308-2006 "Foam Extinguishing Agents" and CCCF-CPRZ-24:2019 "Implementation Rules for Certification of Fire Protection Products - Fire Equipment Products - Extinguishing Agent Products". It was also tested according to GB17835-2008 "Water-based Extinguishing Agents" and the "Test Outline". The product contains no PFOS/PFOA and is non-toxic.

II. Extinguishing Principle:

Aqueous Film-Forming Foam (AFFF/AR) Fire Extinguishing Agent / 6% (-10°C)Multipurpose foam fire extinguishing agent designed for low-expansion foam systems. Product-to-water mixing ratio: 6:94. This product generates foam under mechanical force and forms a polymer film at the fuel-foam interface to protect the foam from polar liquids. It rapidly extinguishes fires by isolating oxygen through the combined action of the film and foam.

III. Scope of Application:

Suitable for fire suppression and prevention of non-water-soluble flammable liquids (e.g., gasoline, diesel, kerosene, heavy oil), water-soluble flammable liquids (e.g., alcohols, ethers, esters, ketones), and general solid materials at airports, oil fields, oil depots, oil tankers, petrochemical plants, large chemical factories, chemical fiber mills, and chemical storage facilities.

4. Storage Packaging Requirements

1 Product packaging containers are plastic drums or iron drums with anti-corrosive lining.

2 Store the product in a cool, dry warehouse away from direct sunlight. The storage temperature should be maintained between -5°C and 45°C.

3: When storing and using the product, ensure the container is clean.Do not mix with foam extinguishing agents, oils, or chemical products from different manufacturers or types, as this may compromise product quality.

4 Product shelf life: 2 years when sealed and stored in the environment described above.

V. Product Standard: GB15308-2006

VI. Product Performance
